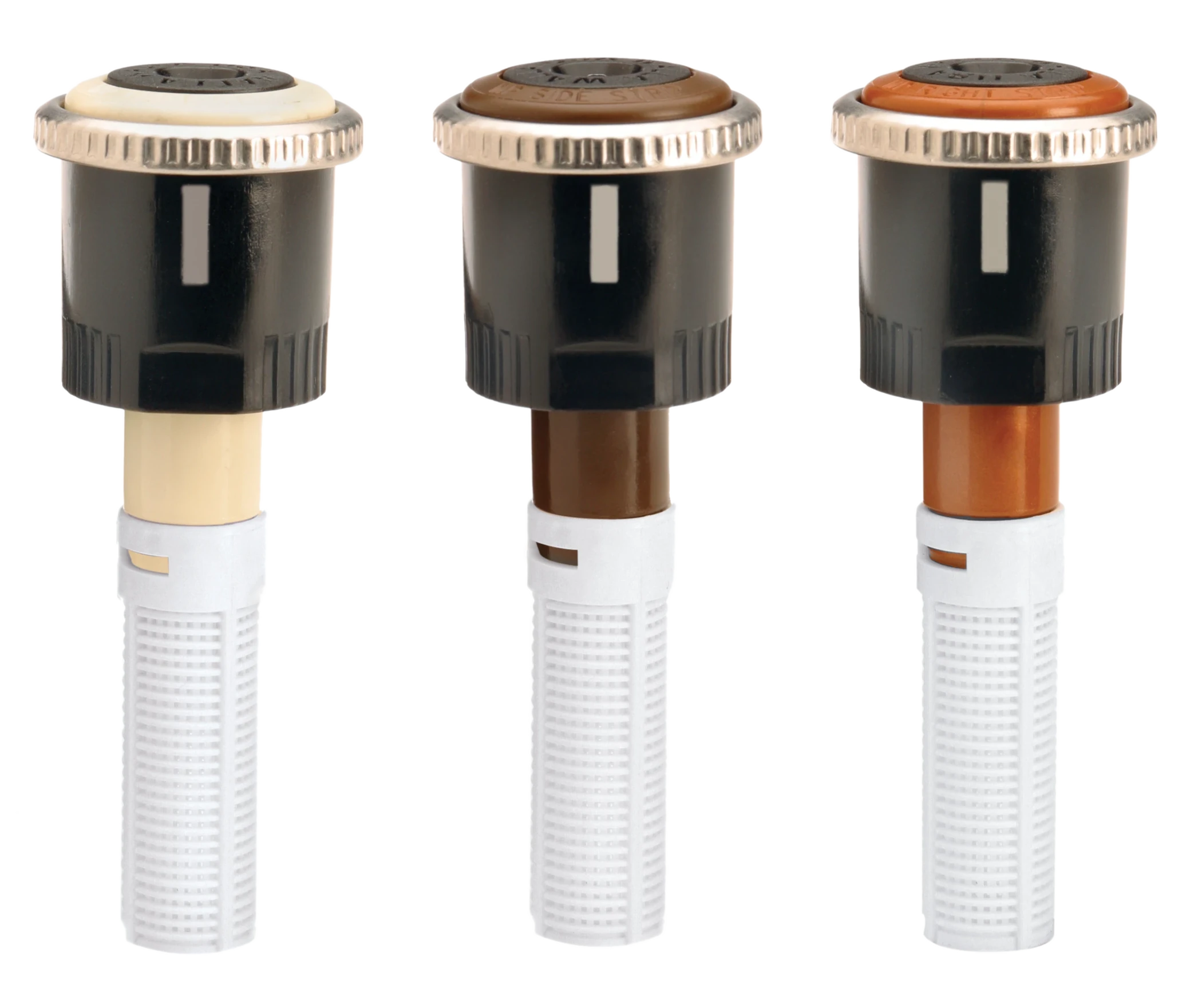

The three MP Strip models of the MP Rotator® family offer an exciting alternative to conventional spray heads to meet the challenges of irrigating strip areas. Strip models offer improved uniformity and excellent wind-fighting ability. The reduced flow rate compared to conventional sprays makes longer runs and/or fewer zones possible.

View Photo Gallery
Performance

Pressure: 30-55 psi (2-4 bar)

Radius: 5-30 ft (1.5-9.1 m)

Features

The MP Left and Right Strips irrigate an area 5’ x 15’ (1.5 m x 4.6 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = 0.19 gpm (.72 lpm). When the radius is reduced the pattern is 4’ x 12’ (1.2 m x 3.7 m). Flow rate at rectangular spacing = 0.14 gpm (0.53 lpm).

The MP Side Strip irrigates a strip 5’ x 30’ (1.5 m x 9.1 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = 0.38 gpm (1.44 lpm). When the radius is reduced the pattern is 4’ x 24’ (1.2 m x 7.3 m). Flow rate at rectangular spacing = 0.27 gpm (1.02 lpm).

WATER CONSERVATION TOOL

  • Multi-trajectory rotating streams provide unmatched uniformity
  • Automatic matched precipitation even after arc & radius adjustment
  • Low application rate reduces runoff on slopes & tight soils

PROVEN DURABILITY & RELIABILITY

  • Rotator® Technology proven in demanding agricultural conditions since 1987
  • One moving part
  • Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by

SIMPLE ADJUSTMENTS

  • Easy arc adjustment
  • Easy radius adjustment - up to 25%
  • No need to change nozzle to maintain matched precipitation
  • Removable inlet filter for easy cleaning

SIMPLIFY DESIGN & INSTALLATION

  • The MP Strips, MP Corner, MP1000, MP2000, MP3000 and MP3500 can be combined on the same zone
Resources
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
