Vast differences in crops, soils, farming practices and climatic conditions worldwide, coupled with regional differences in the availability of water and energy require an array of sprinkler performance characteristics. No reason to get overwhelmed - there is the perfect solution for you - we’ll help you find it.
Widest throw on drops.
Moving streams create extremely effective water patterns for getting water in the ground. Choose from the premiere pivot sprinkler, the Rotator®, or the low pressure option, the Accelerator. When a gentle drop is more desired, the Spinner is a good choice.
Random droplets
In some circumstances and by some irrigator preferences the off-axis sprinkler is the way to go. Choose from the Orbitor for drops or the new Orbitor FX for up-top applications.
LEPA Solutions.
The tan, bubble-wide plate is a new favorite, solving many low pressure problems in Texas and similar locales. Other handy components are the sprinkler converter (for conversion to Accelerator mode) and the hose drag adapter or hose drag cap assembly.
Center pivot irrigation systems today are designed with the capability of 90%+ uniformity levels. Soil water infiltration is now the hot topic. In terms of best-in-class at getting water in the ground, throw radius is the crucial component. The science backs this up. Multiple trajectory, rotating stream technologies produce specifically engineered droplets. Droplets that complement the travel of the pivot – gentler droplets under the machine and optimally sized wind fighting droplets ahead and behind the machine. Longer soak time delivered in a cycle and soak manner…even in the wind. Rotator® technology continues to deliver.

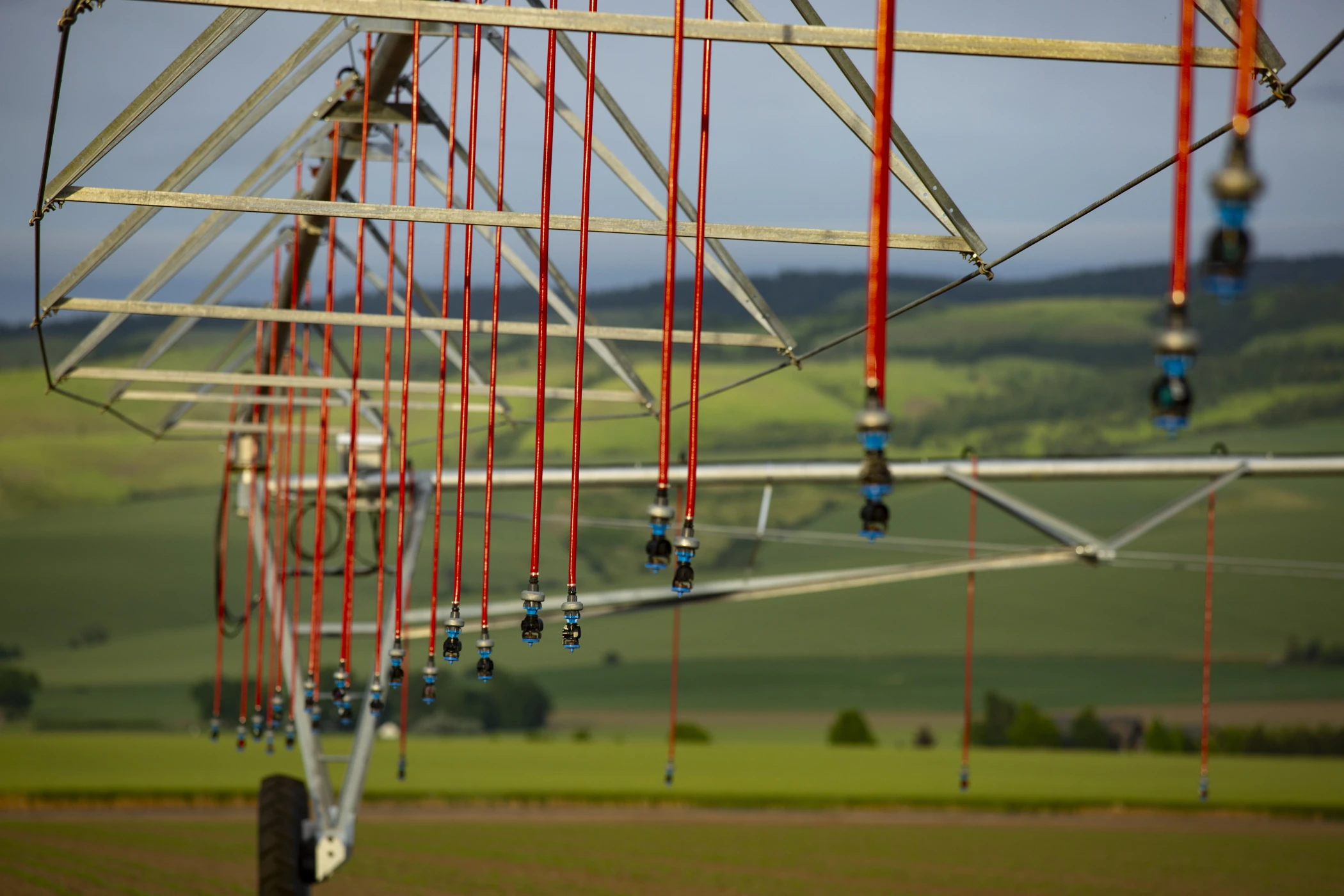

The center pivot offers the perfect platform for sprinklers to deliver water — the right amount in the right way. Contact us to help you find the solution that is right for your particular needs.
Built in the USA with integrity and ingenuity, Nelson Irrigation equipment is the world standard in agricultural and industrial water application. We have a long history of blazing new trails, and our spirit of innovation anchors us to this day.

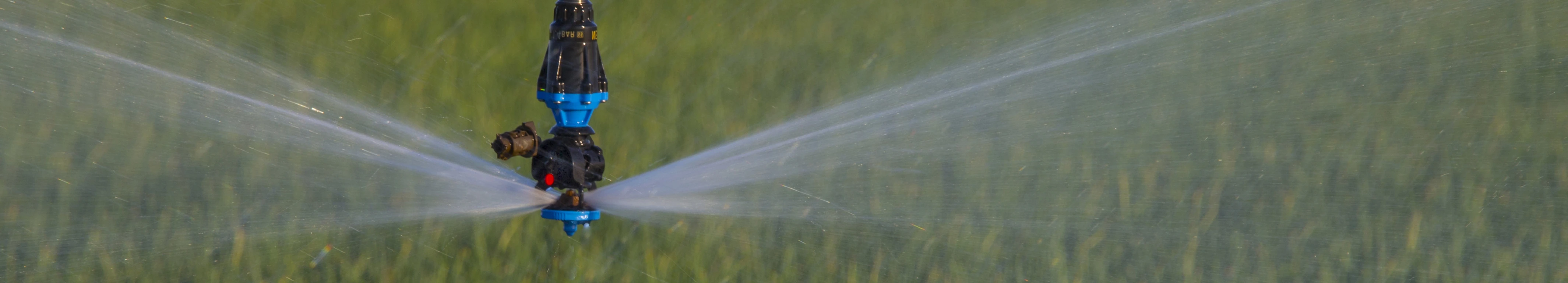

Get to Know NelsonRadius is king
Pressure: 10-50 psi (0.7-3.4 bar)
Diameter: 50-74 ft (15.2-22.6 m)
Nozzle Size: #12-50
Economical / low-pressure
Pressure: 6-15 psi (0.4-1 bar)
Diameter: 30-59 ft (9.1-18 m)
Nozzle Size: #10-50
Low maintenance and no drool
Pressure: 6-20 psi (0.4-1.4 bar)
Diameter: 36-60 ft (11-18.3 m)
Nozzle Size: #11-50
Orbitor technology up-top
Pressure: 6-10 psi (0.4-0.7 bar)
Diameter: 32-52 ft (9.8-15.8 m)
Nozzle Size: #12-50
Gentle, rain-like water pattern
Pressure: 10-20 psi (0.7-1.4 bar)
Diameter: 32-56 ft (9.8-17 m)
Nozzle Size: #14-50
LEPA/LESA solutions
Pressure: 6-40 psi (0.4-2.8 bar)
Diameter: 6-54 ft (1.8-16.5 m)
Nozzle Size: #9-50
Open architecture body used with a variety of Rotator or Sprayhead plates in wastewater applications.
Prevent wheel tracking with part-circle Rotator®, Spinner, or Sprayhead sprinklers installed at pivot towers.
Goosenecks, weights, fittings, nozzle clips and more.
