P85AS Brass Impact

A time-tested, field-proven option for mid-range throw distance.

View Photo Gallery
End of Pivot Products

P85AS Brass Impact

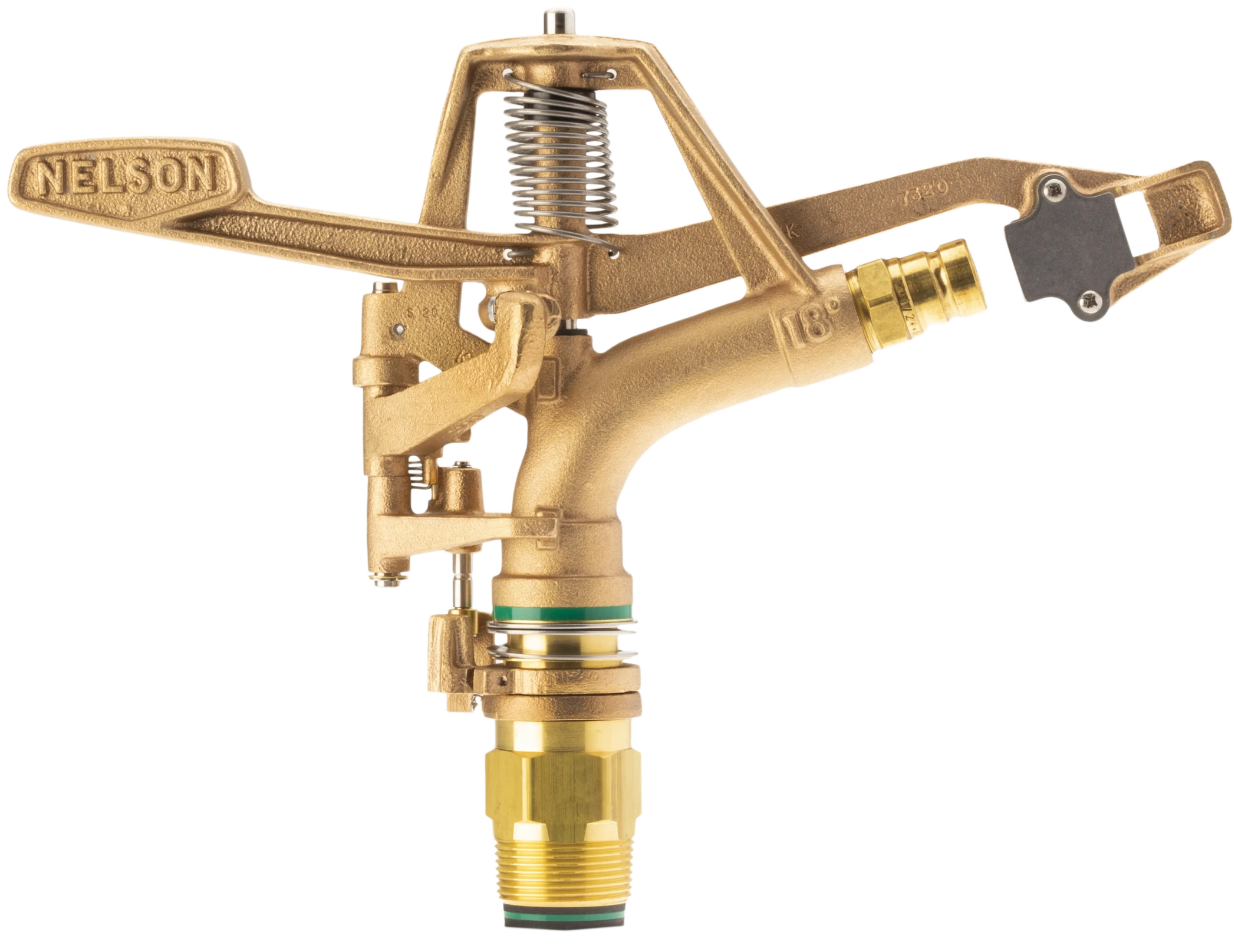

Nelson end of pivot Brass Impact high volume sprinkler
Performance

Flow: 20-60 gpm (4.5-13.6 m3/hr)

Pressure: 30-60 psi (2.1-4.1 bar)

Radius: 50-80 ft (15-24 m)

Features

This low angle, part circle pivot end gun sprinkler has been designed to meet the demanding conditions of pivot end gun operation where the flow rate and distance of throw required is less than that of Big Gun® Sprinklers. An optional diffuser is available for low pressure systems. It is also common to use two P85AS on the end of pivot to achieve the target application rate.

Resources
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
