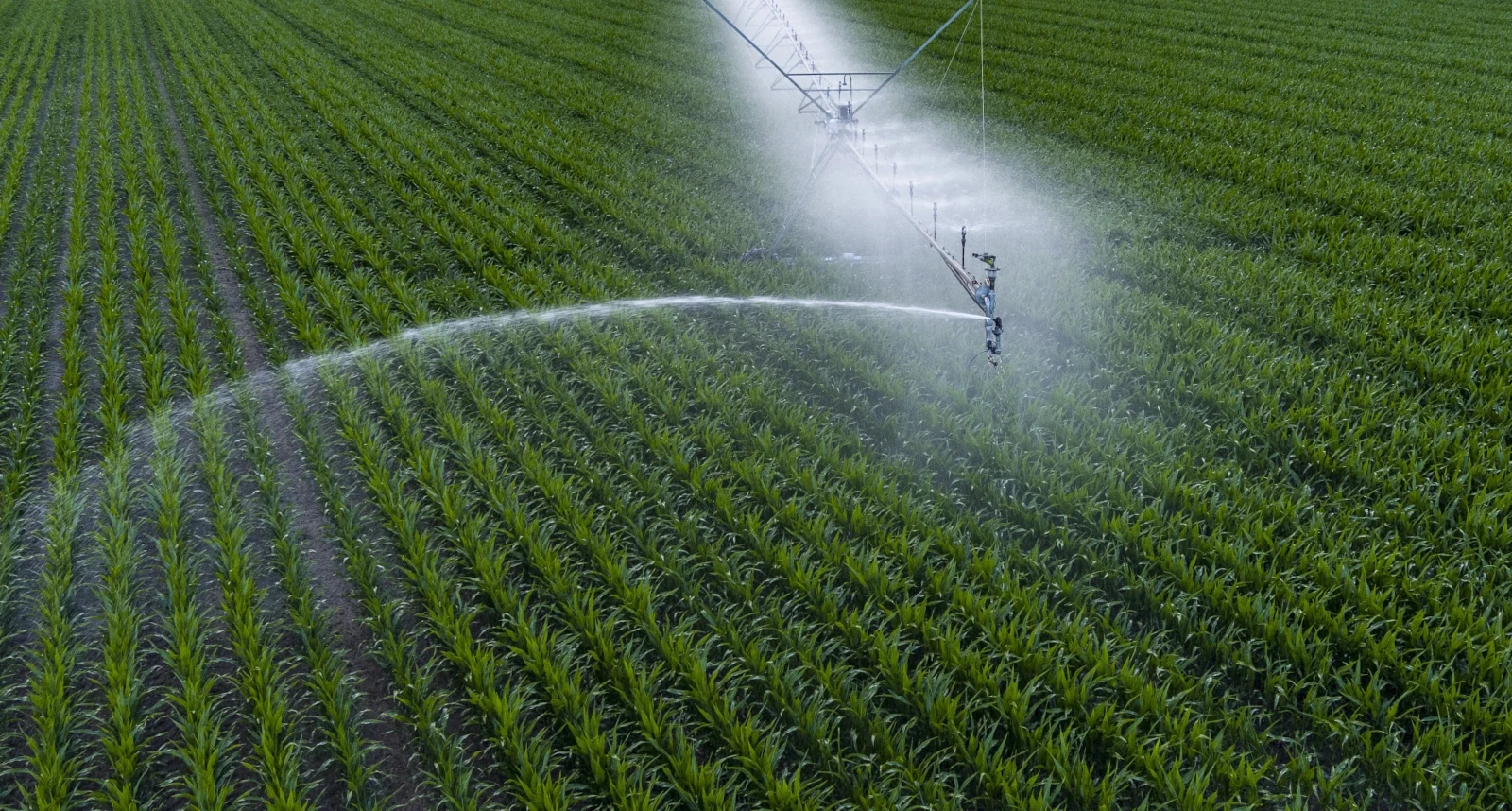

R75 and SR100 Big Gun® sprinkler on center pivot irrigation system
Mechanized Irrigation

End of Pivot

Gaining ground.

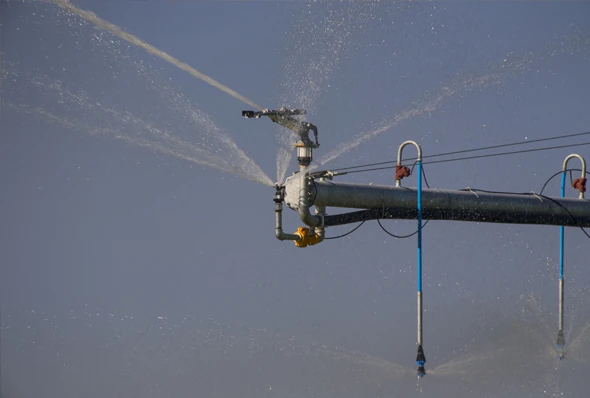

Nelson Irrigation R55 sprinkler & SR100 Big Gun®
Use a primary end gun with secondary end sprinkler for maximum uniformity and coverage, like this SR100 Big Gun® operating with a R55.

Make the most of every acre.

End-of-pivot irrigation is crucial to gaining added acreage and making the most of your water and energy. Nelson’s engineers work every day to make end-of-pivot irrigation even easier to use and more effective. From low pressure to long range, there is an end-of-pivot product for every application.

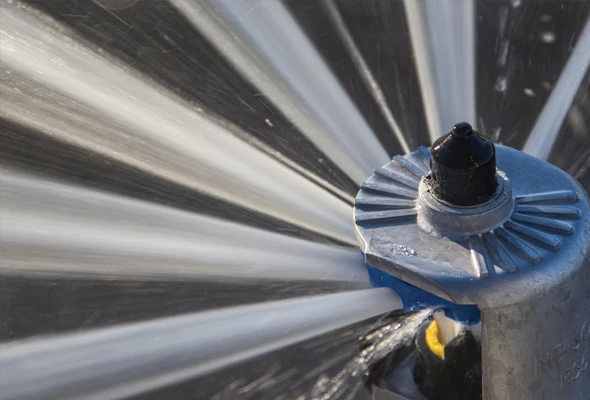

The R55VT is a favorite in end of pivot applications all over the globe.
The R55VT is a favorite in end of pivot applications all over the globe.

Make a big difference with short-range solutions like the R55 VT, R55i VT & R75.

The R55 VT end-of-pivot sprinkler is changing the way farmers irrigate with center pivots. It can be used to pick up added acreage throughout the full revolution of the pivot or just in the corners, depending on site specifics and irrigator preferences. It can be used in conjunction with a higher-volume Big Gun Sprinkler, with a Nelson 1000P Valve for superior control, or on its own for superior sprinkler performance. The R55 VT (with Blue plate) is made to be mounted in an upright position at the end of the overhang, while the R55i VT, with a specially engineered Green plate, has been made for inverted applications. This inverted, or “drop,” configuration is easier to plumb and effective in helping flush debris that collects at the end of the system.

The R75 End of Pivot Sprinkler is a versatile, high-uniformity sprinkler based on field-proven Rotator® Technology. The R75 and R75LP (low pressure option) help fill in the corners and gain up to 70 feet (21 m) of added ground.

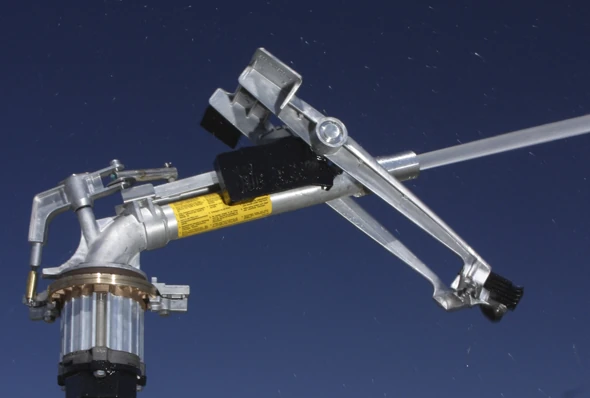

The original Big Gun® is tried and true for performance and dependability.
The original Big Gun® is tried and true for performance and dependability.

Bring out the Big Guns for long-range coverage.

A Big Gun Sprinkler operating through a complete rotation on a quarter-section pivot (160 acres or 64.7 hectares) can effectively irrigate up to 20 additional acres (8.1 ha). Putting this additional land into production is a cost effective way to gain extra irrigated area.

The SR100 Big Gun with an 18 degree trajectory is the most popular pivot end gun used on center pivots today. It is often paired with the 800P or 1000P end gun valve for reliable control. Or, for a plug resistant option, look at the SRNV100 with its integrated valve.

Where high-pressure isn’t available at the end of a system, Nelson Irrigation has engineered lower-pressure options like the 18 degree SR75 for proven dependability, performance, long wear life, and reparability.

Pivot Point to End Gun Brochure
Big Gun® Pivot Solutions
R55VT & R75 Brochure
2" x 1.5" End Sprinkler Adapter
Recommended products for End of Pivot
Part-Circle Impact Sprinklers

1" and 1 1/4" brass impact sprinklers for solid set and end-of-pivot applications.

View Product
Part-Circle Sprinklers

Prevent wheel tracking with part-circle Rotator®, Spinner, or Sprayhead sprinklers installed at pivot towers.

View Product
SR75 18° Big Gun®

Long range, low pressure

Flow: 30-100 gpm (7-23 m3/hr)

Pressure: 25-60 psi (1.75-4 bar)

Radius: 70-90 ft (21-28 m)

View Product
SR100 18° Big Gun®

The premier center pivot end gun

Flow: 50-150 gpm (11-34 m3/hr)

Pressure: 40-80 psi (2.75-5.5 bar)

Radius: 90-120 ft (28-37 m)

View Product
SRNV100 Big Gun®

SR100 performance with an integrated control valve and flushing capability.

View Product
75 Series Big Gun®

Excellent option when flow or pressure are limited

Flow: 25-160 gpm (6-36 m3/hr)

Pressure: 25-80 psi (1.75-5.5 bar)

Radius: 75-140 ft (23-43 m)

Trajectory: 18°, 21°, 24°, 43°

View Product
100 Series Big Gun®

The industry standard and most versatile high volume sprinkler.

Flow: 40-300 gpm (9-68 m3/hr)

Pressure: 40-110 psi (2.75-7.5 bar)

Radius: 90-190 ft (27-58 m)

Trajectory: 18°, 21°, 24°, 43°, 15-45°

View Product
R55 End of Pivot Sprinklers

Short-range, low-pressure

Flow: 20-105 gpm (4.2-23.6 m3/hr)

Pressure: 15-60 psi (1-4 bar)

Radius: 40-56 ft (12.2-16.9 m)

View Product
R75 End of Pivot Sprinklers

Mid-range, low-pressure

Flow: 24-70 gpm (5.4-15.4 m3/hr)

Pressure: 25-60 psi (1.75-4 bar)

Radius: 50-70 ft (14.9-21 m)

View Product
P85AS Brass Impact

Mid-range, medium pressure

Flow: 20-60 gpm (4.5-13.6 m3/hr)

Pressure: 30-60 psi (2.1-4.1 bar)

Radius: 50-80 ft (15-24 m)

View Product
800P End Gun Valve

Control valve for SR75 and SR100 end guns

View Product
1000P End of Pivot Valve

Control valves for center pivot end guns (SR75 and SR100 Big Gun® sprinklers) and end sprinklers (R55 and R75)

View Product
SRNV100 Nozzle Valve

Standard SR100 18° pivot end gun with an integrated, plug-free valve.

View Product
Purge Valve

Automatic flushing at start up and shut down.

View Product
Part Circle SR75

Part-circle operation for use as a pivot end gun or in solid set edge applications where pressure and/or flow is limited.

View Product
Part Circle SR100

The original pivot end gun and classic high volume sprinkler for part-circle operation.

View Product
