Pivot Sprinklers

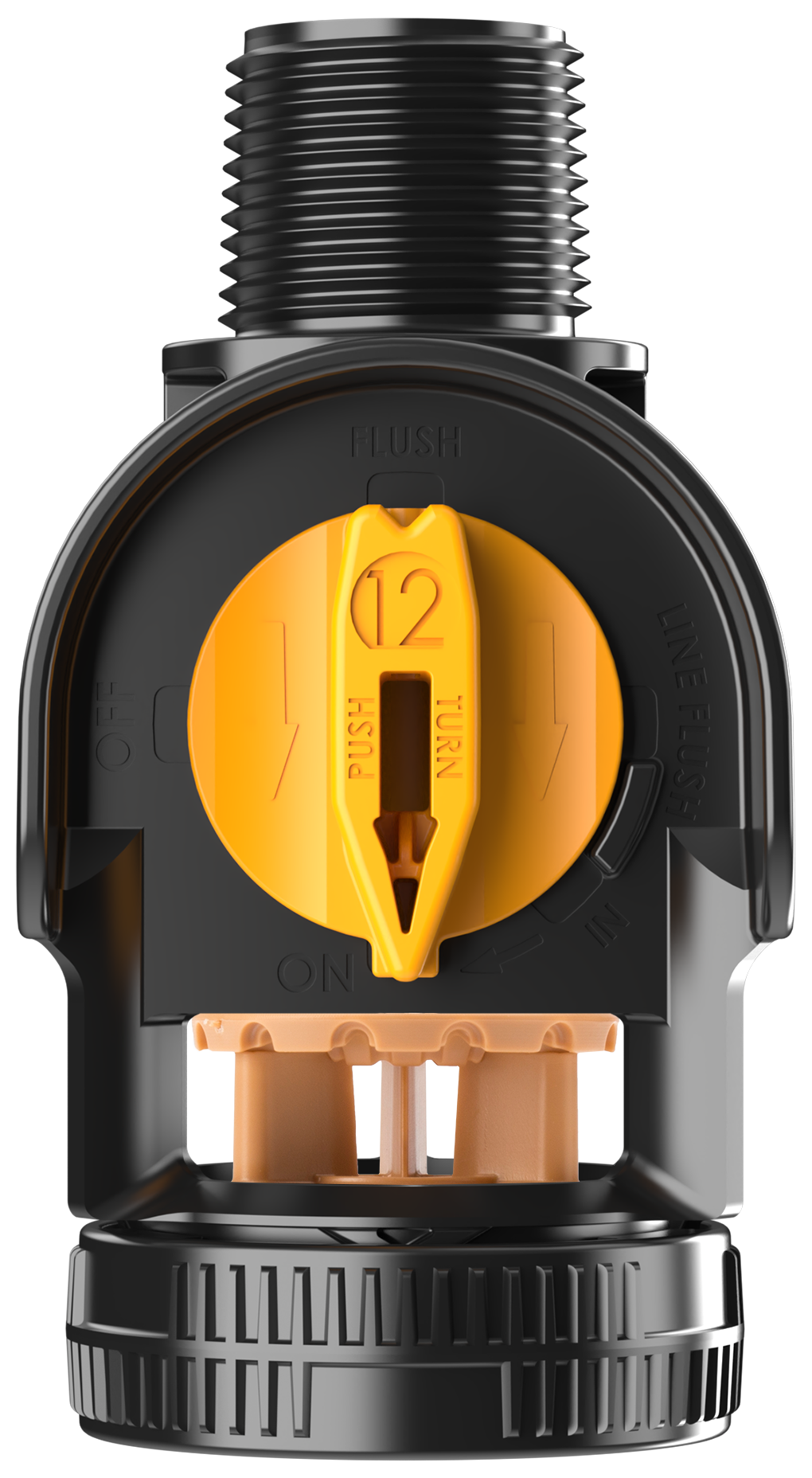

Sprayhead

The Sprayhead is a reliable option for LEPA/LESA applications.

View Photo Gallery
Pivot Sprinklers

Sprayhead

Sprayhead
Performance

Pressure: 6-40 psi (0.4-2.8 bar)

Diameter: 16-40 ft (4.9-12.2 m)

Nozzle Size: #9-50

Features

Germinate, Irrigate, Chemigate

The flip-over dual spray cap allows easy conversion of the spray pattern. Choose from spray plate options to germinate, irrigate, and chemigate.

"Low Energy Down in the Crop"

The sleek, crop-guarded body design provides durability for dragging the sprinkler down in tall growing crops like corn.

Optional LEPA Accessories

The hose drag adapter allows simple conversion of the Sprayhead to a hose drag system. Both the D3000 and D3030 have "bubble" modes for LEPA. D3000 requires bubble clip.

Note: for optimum performance in most applications, do note exceed 20 psi (1.4 bar). As pressure increases above this limit, excessive misting and wind drift will occur that is not generally acceptable. Throw diameter ranges shown are at 3' (0.9 m) mounting height.

Press, Spin, Click

At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle.

  • Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
  • Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
  • Save Labor: 3NV systems are easier to install and maintain.
  • Integrated: The modular design works with existing 3000 Series cap, plate, fittings, and regulators. You simply need a new nozzle and body to get the full benefits of the 3030 Series.
Models

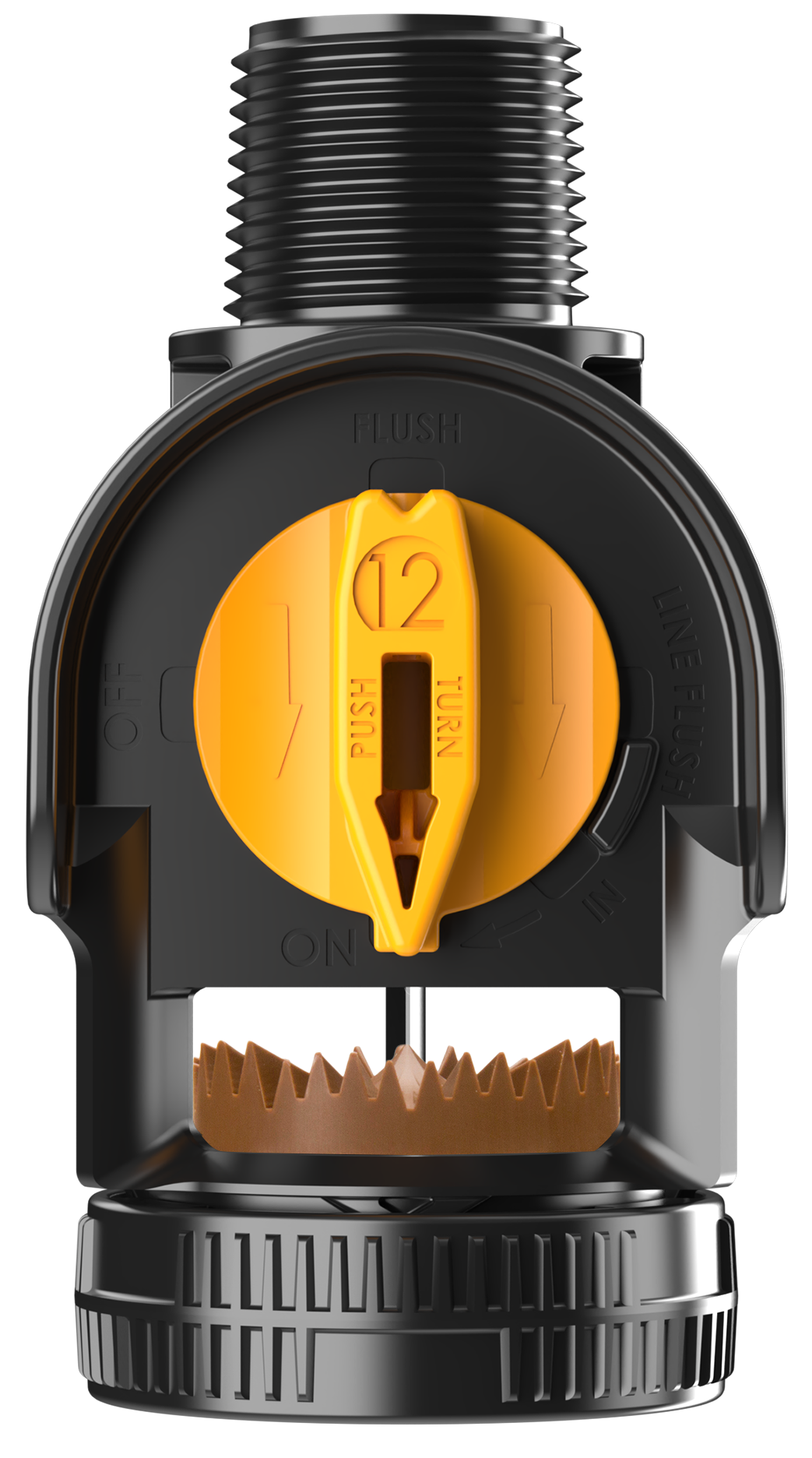

D3030 Sprinkler with Multi-function 3NV Nozzle

D3030 Sprinkler with Multi-function 3NV Nozzle

Nozzle flush, line flush, and shutoff - all without removing the nozzle.

D3000 Sprinkler with 3TN Nozzle

D3000 Sprinkler with 3TN Nozzle

Classic precision nozzle design

Plates
Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
