IRRICAD

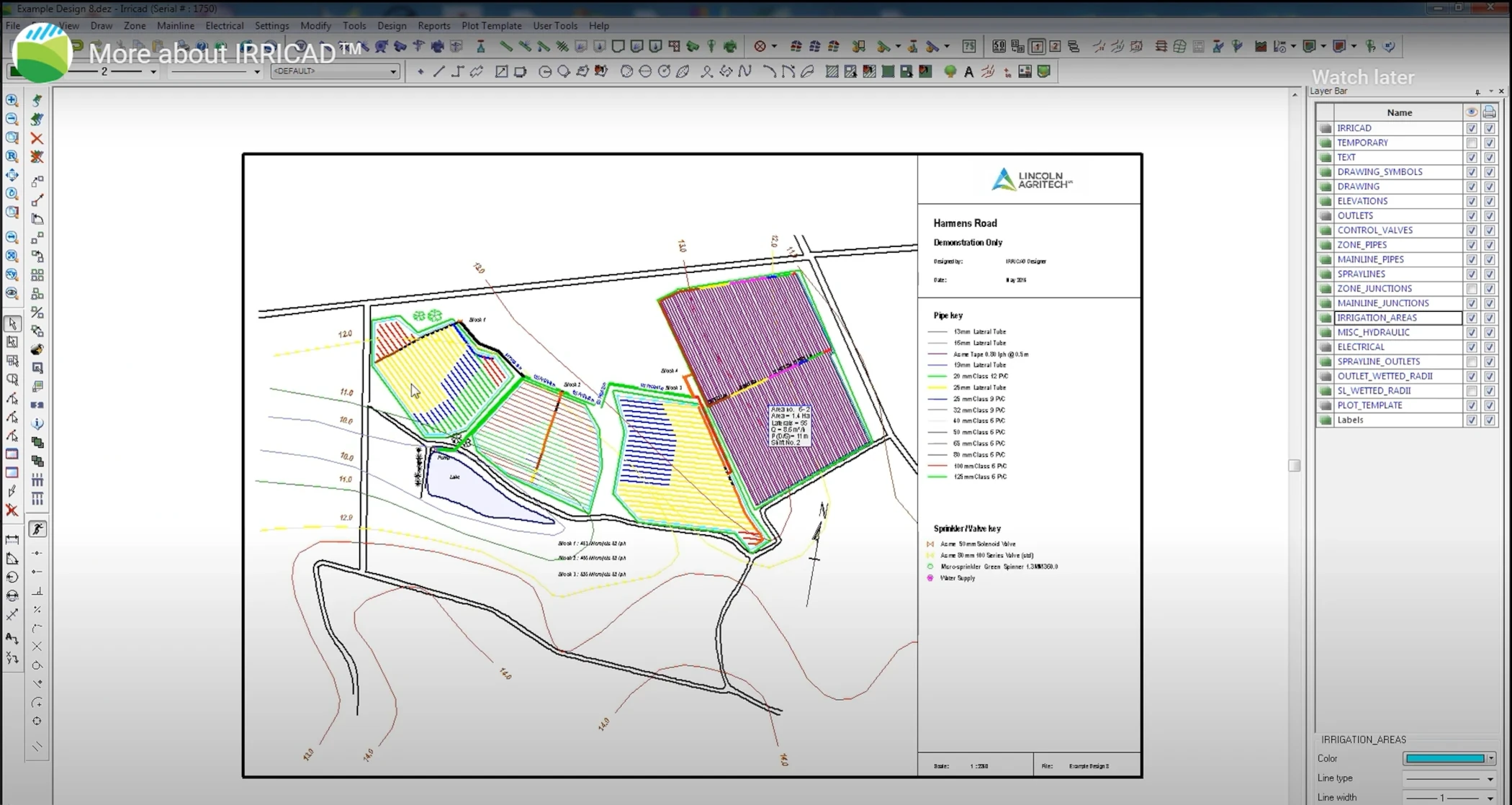

IRRICAD is a graphically based, computer-aided design package developed specifically for designing pressurized irrigation or water supply systems. IRRICAD is far more than a drawing package because it combines the advantages of CAD drawing with powerful hydraulic pipe sizing and network analysis techniques, and it also provides automatic selection of pipe fittings, thereby generating a complete bill of materials.

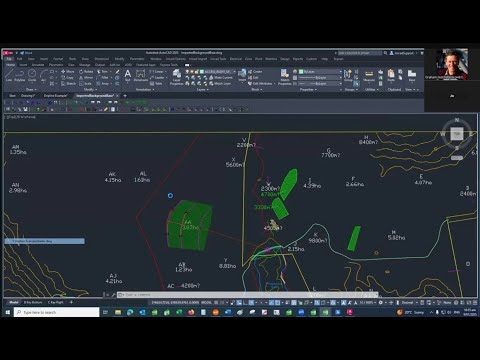

Available as a standalone program and also as a plug-in (IRRICAD LINK) for AutoCAD® and BricsCAD. Benefits include fully customizable menus, improved graphical performance, familiar interface and streamlined design. Go to irricad.com for more information.

View Photo Gallery
Software

IRRICAD

IRRICAD
Features

Systems can be designed to cover a full range of functions including:

  • Sprinkler/Micro sprinkler
  • Drip and Drip Tape
  • Nursery
  • Dust Suppression
  • Mainline Networks
  • Stock Water Systems
  • Residential and Commercial Turf
  • Sports Fields/Golf Courses
  • Systems Pressurized by Gravity
