ROTATOR® SPRINKLERS

R5 Rotator®

The R5 Rotator® is a micro sprinkler for Full Coverage Irrigation.

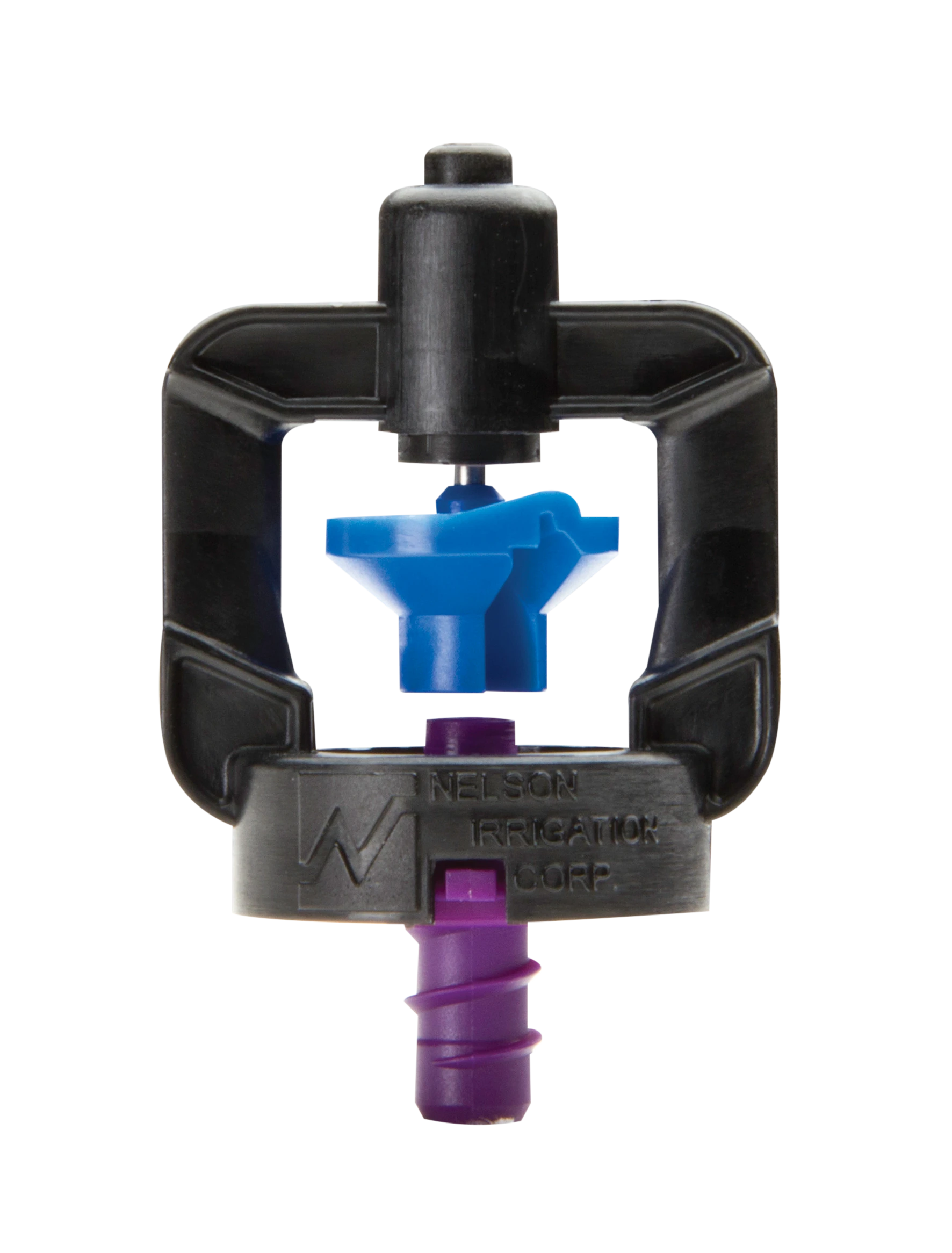

R5 Rotator® Irrigation Sprinkler

Performance

chevron-right

Features

chevron-right

Plates

chevron-right

Resources

chevron-right

Related Products

chevron-right

View Photo Gallery

chevron-right

Recommended For

chevron-right

PERFORMANCE

Flow: 9-29 gpm (34-110 m3/hr)

Pressure: 15-40 psi (1-2.75 bar)

Radius: 7-18 ft (2.1-5.5 m)

Nozzle Size: #35-#50, 8.5-24 5FC

FEATURES

It has higher uniformity, greater distance of throw, and provides better infiltration than comparable micro sprays or spinners. The flow control nozzle option is fully flow regulating as low as 15 psi (1 bar), while pressure compensation in other micro sprinklers begins to function at higher pressures. Low pressure options and a wide range of nozzles and accessories enable the installation of the R5 into any type of micro irrigation system.

PLATES

Blue 6°

Green 9°

NEXT

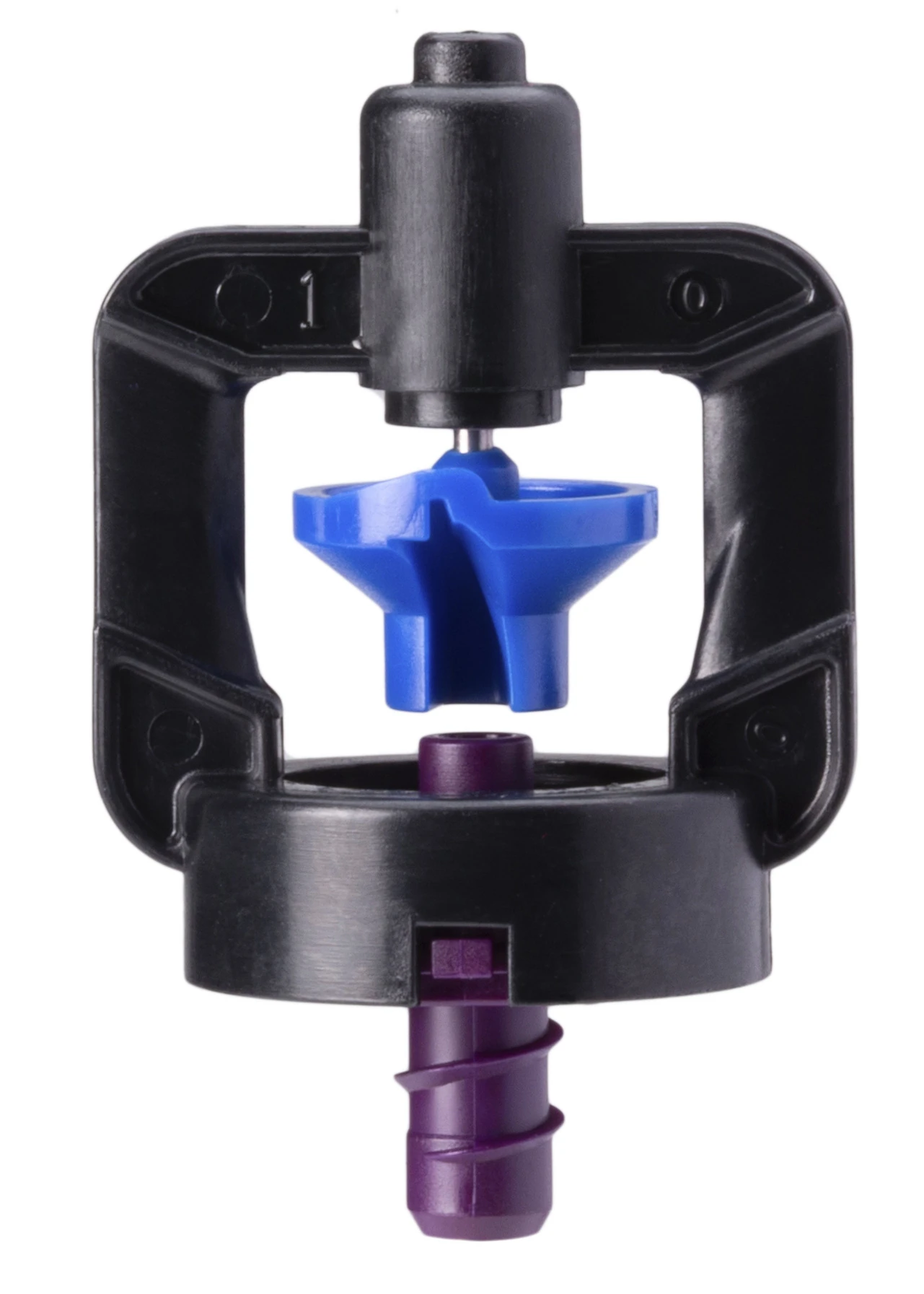

Blue 6°

The R5 Blue 6° plate provides lower pressure operation and faster rotation speeds than the Green plate. It is most often used at pressures of 30 psi or below.


Brochures

Performance & Specifications

Technical

Videos

RELATED PRODUCTS

Please read our Warranty information and detailed Product Performance Notes for important information.
