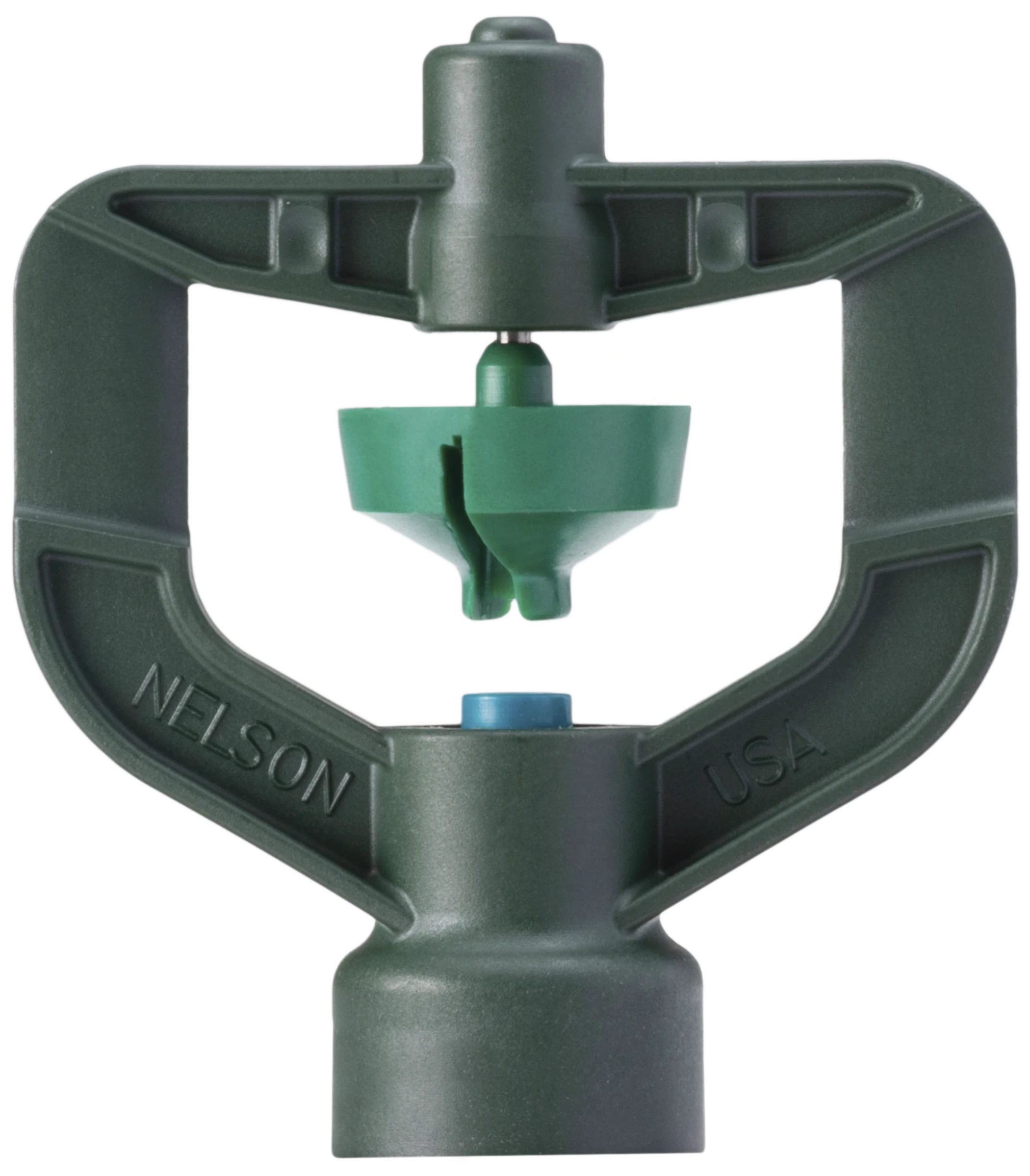

PERFORMANCE
Flow: 0.8-5 gpm (187-1144 m3/hr)
Pressure: 20-50 psi (1.5-3.5 bar)
Radius: 13-22 ft (4-6.7 m)
FEATURES
With its high-flow capacity, high uniformity, and greater radius you will need far less S10 Spinners than traditionally needed in similar applications. Space the S10 from 16 x 16 to 26 x 26 feet (5 x 5 to 8 x 8 meters) depending on your conditions. Closer spacings will normally deliver the best uniformity, especially in the wind. Three plate options are available for high trajectory, low trajectory, or flat trajectory performance.
- Tough, durable, and reliable build.
- High uniformity.
- Easy-clean, color-coded nozzles.
- PVC or threaded adapter options.
- Mini Regulator Drain Check option.
- FT4 or FT5 feedtube options for easy connection to polyethylene pipe.
- For inverted installations on flexible drops, use a 10 mm x 36" feedtube (#11454-036) with 3/4" PVC x 1/2" ACME adapter (#11429). Install short length of 3/4" Sched. 40 PVC to stabilize the sprinkler.
PLATES
Gray 0°
Green 7°
Black 24°
NEXT

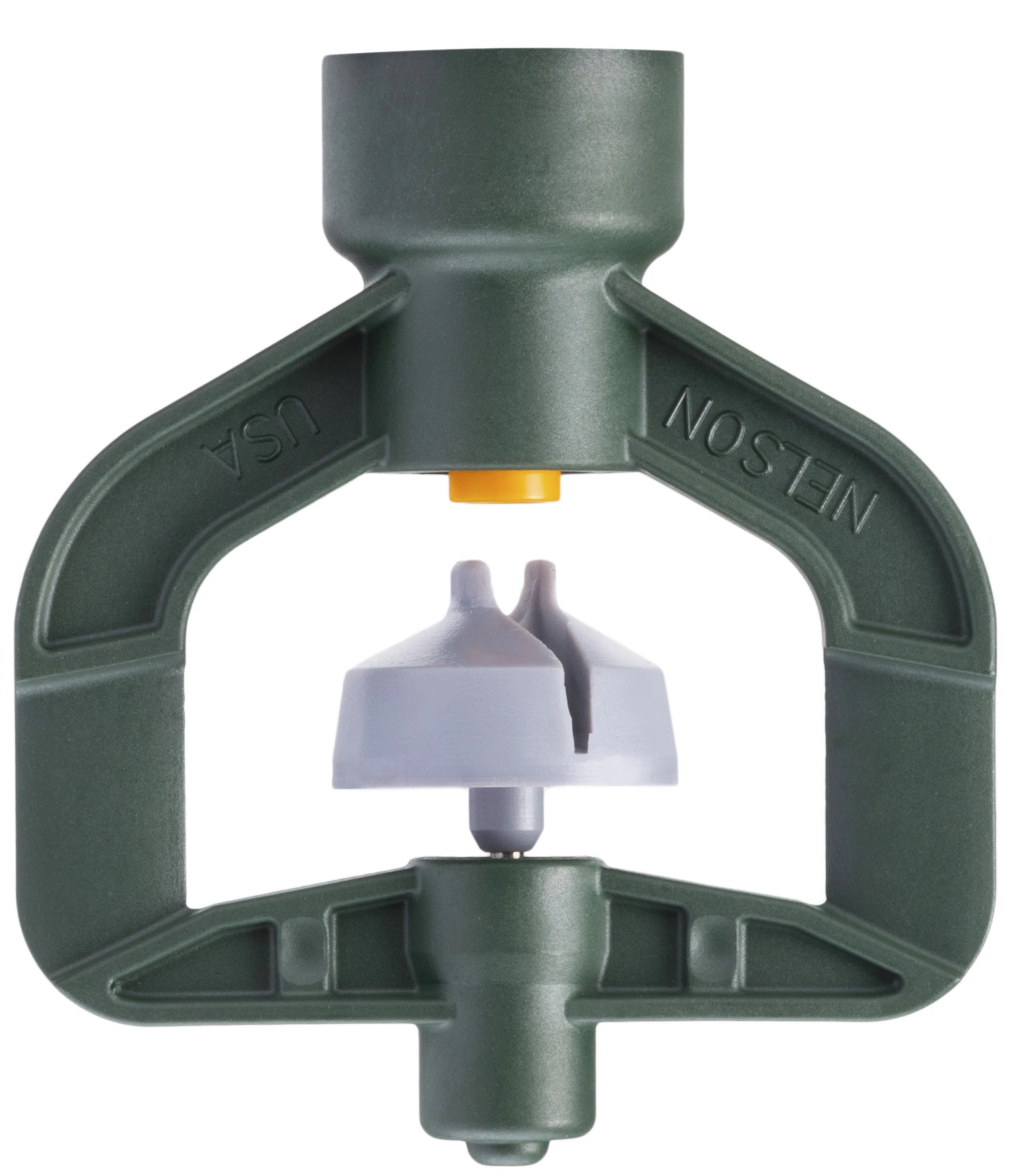

Gray 0°
Widest throw with inverted mounting
The Gray plate for the S10 is a flat trajectory plate for the greenhouse, nursery and arena applications. The Gray S10 plate can be used only in the inverted orientation. With 2 fast spinning and flat-trajectory streams, the Gray plate allows the S10 to achieve the widest wetted pattern available in any inverted S10 Spinner plate. When inverted, the S10 with Gray plate can be hung on a flexible drop tube.
