PERFORMANCE
Flow: 0.3-0.7 gpm (61-159 m3/hr)
Pressure: 25-50 psi (1.8-3.4 bar)
Radius: 18-27 ft (5.5-8.2 m)
Nozzle Size: #40-60 2TN, 0.35-0.5 10FC
FEATURES
Applications include: under-tree irrigation and environmental control of tree fruit, vine, and tree nut crops — as well as overhead irrigation, cooling, and environmental control in tree, vine, small fruit, and nursery crops.
The R10 is often used on permanent set using either PVC pipe or polyethylene pipe laterals, and portable pipes including aluminum, polyethylene and PVC.
Available with 3/8" MNPT, 1/2" MNPT, or 1/2" female Acme threaded connection.
PLATES
P2 9° Red
P4 9° White
P4 15° Orange
NEXT

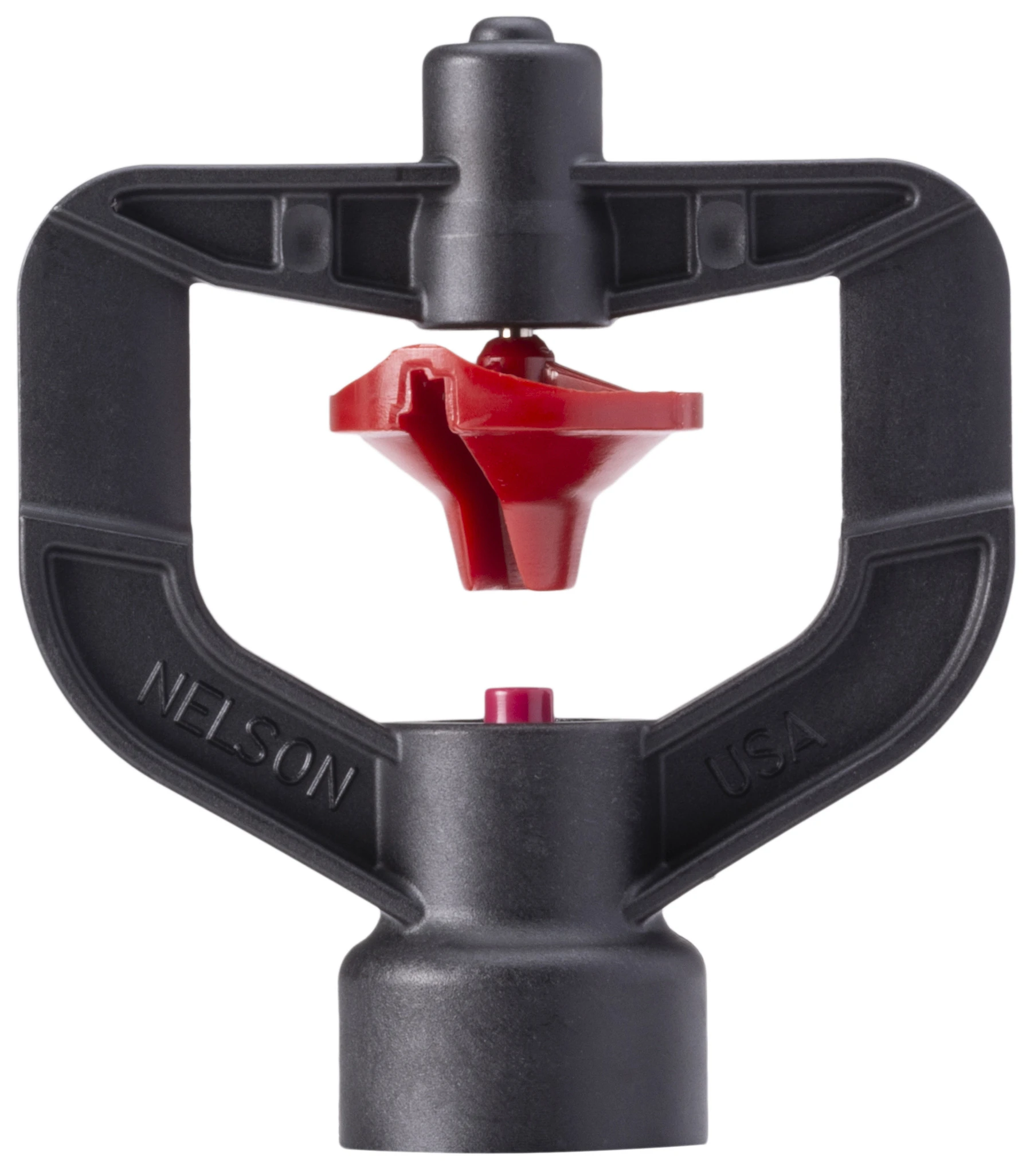

P2 9° Red
Lower flow rates at a low trajectory
The Red plate provides the lowest trajectory, in the smallest flow rate available in the R10. It is a great choice for under tree irrigation systems in closely spaced orchards.
