R55 End of Pivot Sprinklers

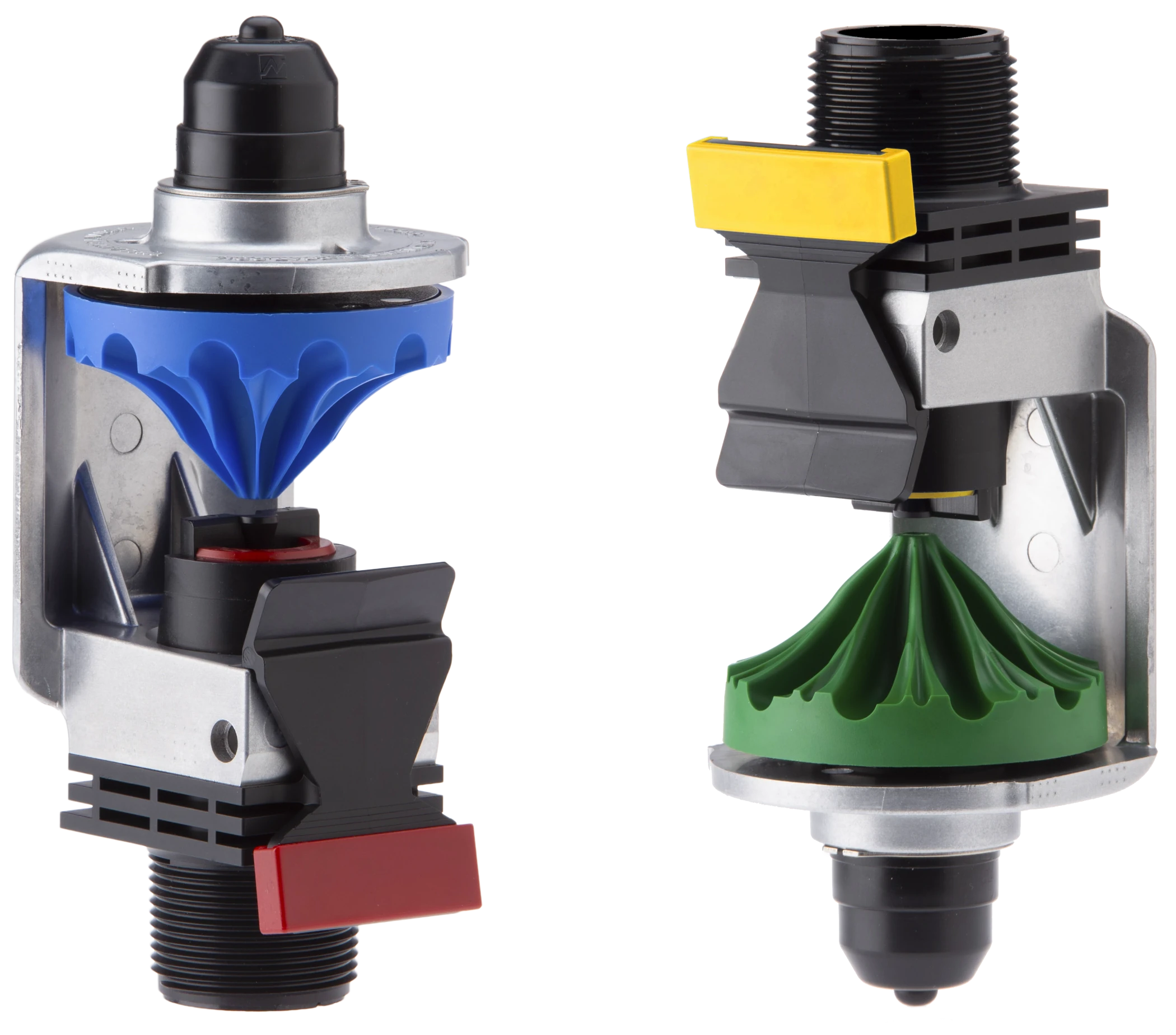

No other End of Pivot Sprinklers work in the low pressure range of 15-60 PSI (1-4 bar) and provide up to 10 additional irrigated acres (on a 1/4 mile pivot). Choose from upright R55 VT or inverted R55i VT.

View Photo Gallery
End of Pivot Products

R55 End of Pivot Sprinklers

R55 End of Pivot Sprinklers
Performance

Flow: 20-105 gpm (4.2-23.6 m3/hr)

Pressure: 15-60 psi (1-4 bar)

Radius: 40-56 ft (12.2-16.9 m)

Features

The new Nelson R55 VT uses a patented variable torque speed governing system that allows the plate to maintain a constant rotation speed across a broad range of nozzle sizes and pressures. This constant rotation speed results in maximum radius of throw - up to 56 ft (16.9 m).

The latest generation of the R44 also incorporates snap-fit nozzles, eliminating the need for a retaining pin to secure the nozzle to the sprinkler body. The sprinkler threads are integral with the nozzle, and are available in 1 1/4" MNPT or MBSP.

The inverted R55i VT, with a specifically engineered green plate, is easier to install and it’s effective in helping flush debris that collects at the end of the system.

Pick up added acreage both throughout the full revolution of the pivot or just in the corners, depending on site specifics and irrigator preferences. Use independently or in conjunction with a higher volume Big Gun® Sprinkler.

Models

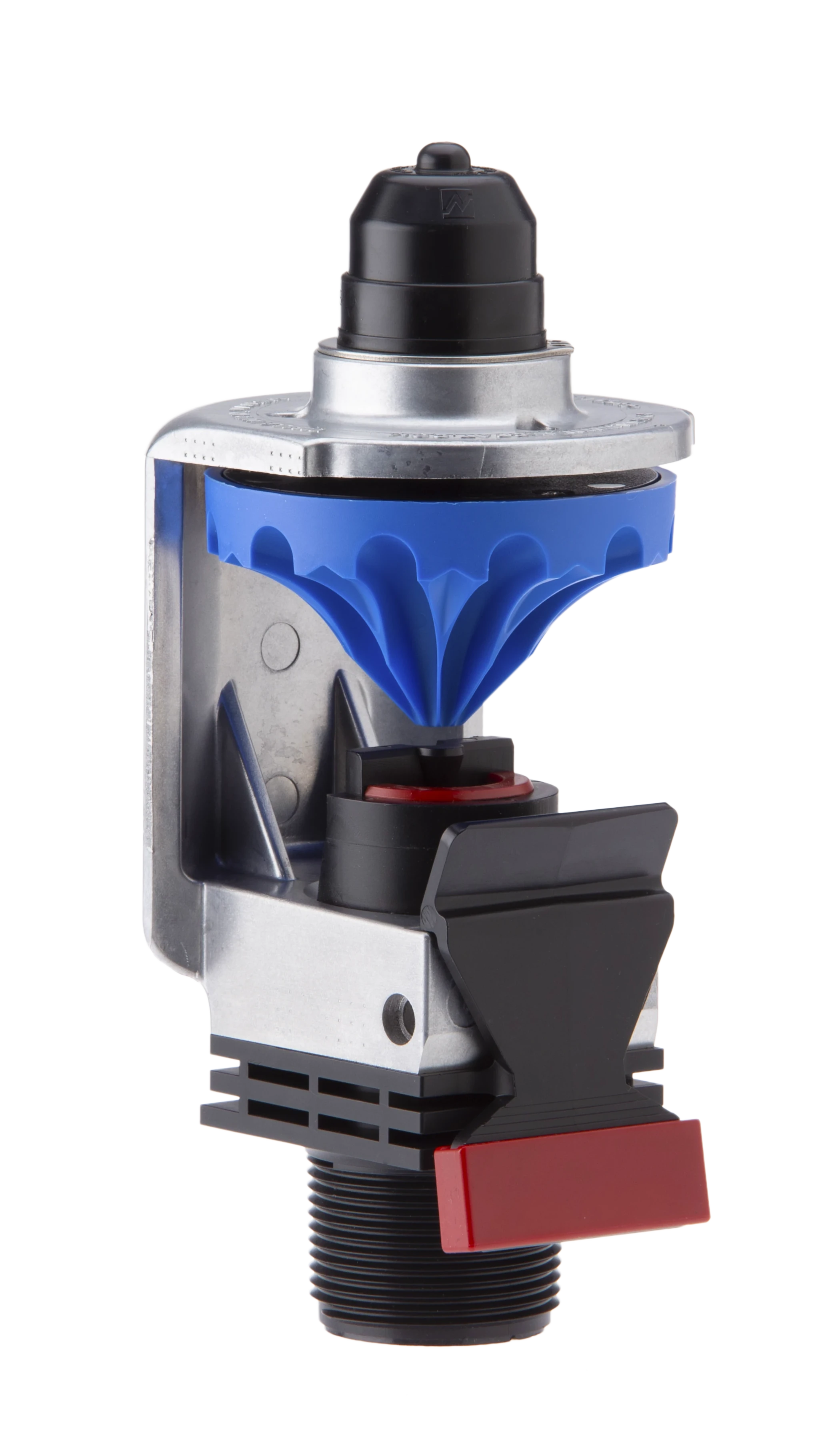

R55 VT

R55 VT

Upright mount for maximum radius of throw.

20-105 gpm (4-24 m3/hr)

R55i VT

R55i VT

Inverted mount for easier install and better debris flushing.

20-90 gpm (4-20 m3/hr)

Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
