Orbitor FX

Field-proven, off-axis Orbitor technology provides a random droplet pattern in a compact, low-vibration design.

View Photo Gallery
Pivot Sprinklers

Orbitor FX

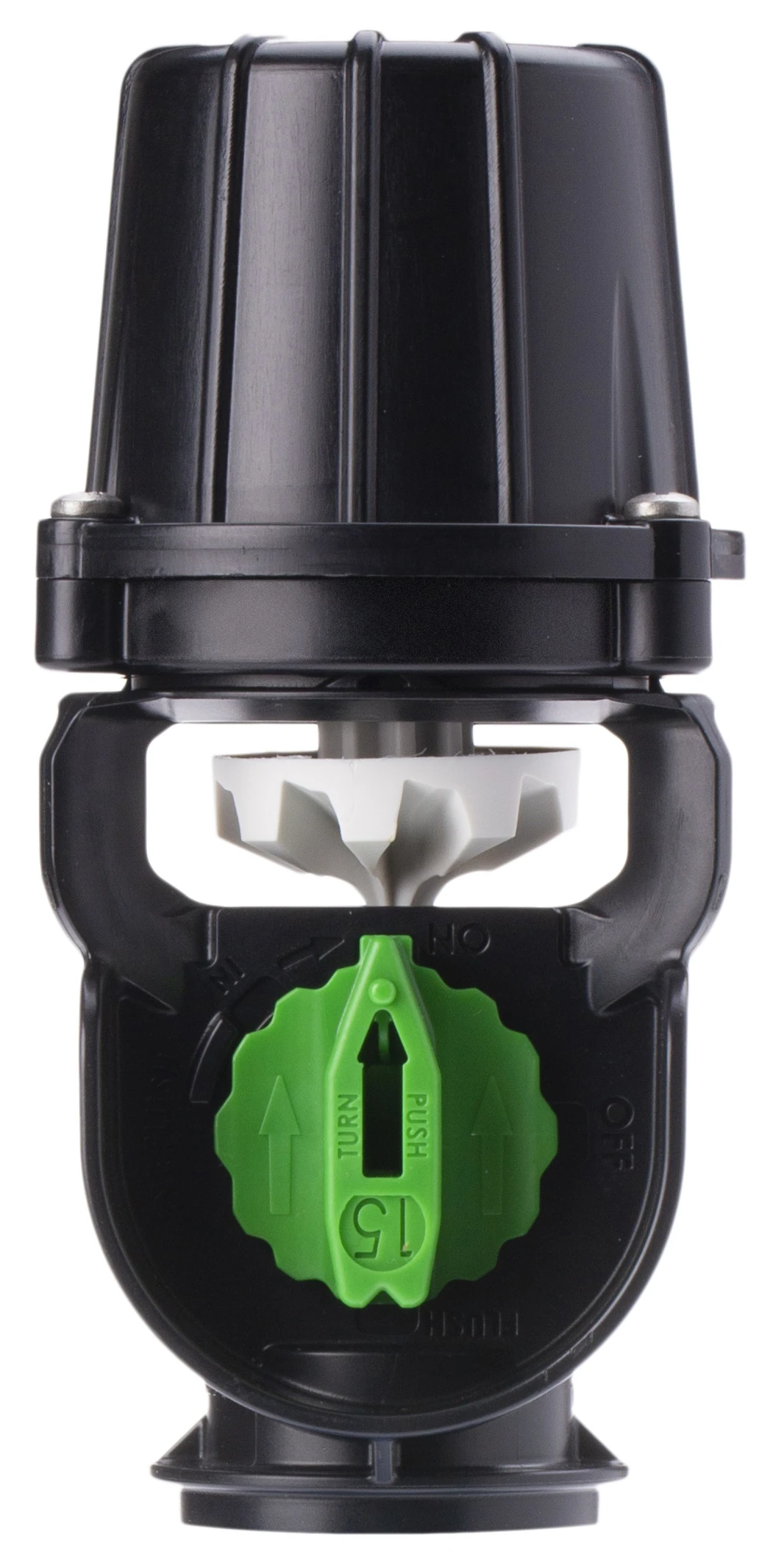

Orbitor FX
Performance

Pressure: 6-10 psi (0.4-0.7 bar)

Diameter: 32-54 ft (9.8-16.5 m)

Nozzle Size: #12-50

Features

Up-top random droplets

The Orbitor FX is Nelson's newest pivot sprinkler. It makes the proven Oribtor technology available in an up-top option.

  • Engineered plate grooves reduce mist
  • Rain-like random droplets
  • Low, wind-fighting trajectory
  • 10 PSI recommended (#12-50 Nozzles) – Max. 54 ft (16.5 m) wetted diameter (preliminary)
  • 6 PSI optional (#16-50 Nozzles)
  • Use galvanized (maximum riser of 4 ft (1.2 m)) or proven plastic nipples (no PVC nipples)
  • Available only in 3030 Series

Press, Spin, Click

At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle.

  • Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
  • Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
  • Save Labor: 3NV systems are easier to install and maintain.
Plates
Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
